SiS3511

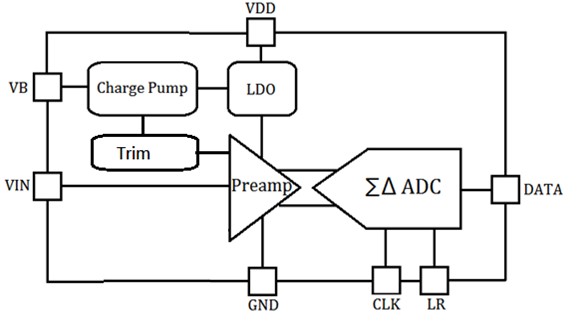

Diagram
應用類別
- ASIC for MEMS MIC in Audio Devices
產品特性
- Operating Voltage : 1.65V to 3.60V
- Multiple Operational Modes : Low Power mode/ Active mode
- Low Power Mode Current : 450 uA Typical
- Active Mode Current : 900 uA Typical.
- Output Equivalent Noise : -91dBFS A-weighted
- High SNR: 64dB(A)
- High AOP:118 (dBSPL) @ 10% THD @ 1 kHz
- Bottom Port Gain : 11.2dB~16.45dB with the resolution of 0.35dB by configuration
- Top Port Gain : 15.2dB~20.45dB with the resolution of 0.35dB by configuration
- Bias Voltage : 6V~15V with the resolution of 0.3V/1V by configuration
- Operating Temperature : -40⁰C to 85⁰C
- ASIC Form: Chip (Wafer)
- Die Size: 988um X 735um
